Inertsil® CN-3 分析カラム

Inertsil CN-3 は、シリカゲルにシアノプロピル基を化学結合させており、逆相 / 順相のどちらの分離モードでも使用できるカラムです。逆相モードにおいては、シアノ基の三重結合により、フェニルカラム等と同様にπ電子相互作用が働きます。また、順相モードにおいては、独自の技術でシアノプロピル基を高密度に結合させた効果により、市販シアノプロピルカラムと比較して非常に高い分離選択性を誇ります

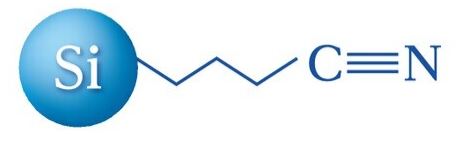

化学結合基の画像

化学結合基

シリカゲル :3シリーズ高純度球状シリカゲル
粒子径 :3µm、5µm
表面積 :450m2/g
細孔径 :100Å
細孔容積 :1.05mL/g
化学結合基 :シアノプロピル基
エンドキャップ処理 :無
炭素量 :14%
USPコード :L10

Inertsil® CN-3 分析カラム

粒子径
内径
長さ
SDS入数Cat.No.価格
3µm1.0mm33mmJPNENG1本5020-8533173,000
3µm1.0mm50mmJPNENG1本5020-8533273,000
3µm1.0mm75mmJPNENG1本5020-8533385,000
3µm1.0mm100mmJPNENG1本5020-8533485,000
3µm1.0mm150mmJPNENG1本5020-8533594,000
3µm1.0mm250mmJPNENG1本5020-85336107,000
3µm1.5mm33mmJPNENG1本5020-8534173,000
3µm1.5mm50mmJPNENG1本5020-8534273,000
3µm1.5mm75mmJPNENG1本5020-8534385,000
3µm1.5mm100mmJPNENG1本5020-8534485,000
3µm1.5mm150mmJPNENG1本5020-8534594,000
3µm1.5mm250mmJPNENG1本5020-85346107,000
3µm2.1mm33mmJPNENG1本5020-0526151,000
3µm2.1mm50mmJPNENG1本5020-0526251,000
3µm2.1mm75mmJPNENG1本5020-0526357,000
3µm2.1mm100mmJPNENG1本5020-0526457,000
3µm2.1mm150mmJPNENG1本5020-0526566,000
3µm2.1mm250mmJPNENG1本5020-0526676,000
3µm3.0mm33mmJPNENG1本5020-0527151,000
3µm3.0mm50mmJPNENG1本5020-0527251,000
3µm3.0mm75mmJPNENG1本5020-0527357,000
3µm3.0mm100mmJPNENG1本5020-0527457,000
3µm3.0mm150mmJPNENG1本5020-0527566,000
3µm3.0mm250mmJPNENG1本5020-0527676,000
3µm4.0mm33mmJPNENG1本5020-0528151,000
3µm4.0mm50mmJPNENG1本5020-0528251,000
3µm4.0mm75mmJPNENG1本5020-0528357,000
3µm4.0mm100mmJPNENG1本5020-0528457,000
3µm4.0mm150mmJPNENG1本5020-0528566,000
3µm4.0mm250mmJPNENG1本5020-0528676,000
5µm4.0mm300mm1本5020-8999172,000
3µm4.6mm33mmJPNENG1本5020-0529151,000
3µm4.6mm50mmJPNENG1本5020-0529251,000
3µm4.6mm75mmJPNENG1本5020-0529357,000
3µm4.6mm100mmJPNENG1本5020-0529457,000
3µm4.6mm150mmJPNENG1本5020-0529566,000
3µm4.6mm250mmJPNENG1本5020-0529676,000
5µm1.0mm33mmJPNENG1本5020-8531172,000
5µm1.0mm50mmJPNENG1本5020-8531272,000
5µm1.0mm75mmJPNENG1本5020-8531378,000
5µm1.0mm100mmJPNENG1本5020-8531478,000
5µm1.0mm150mmJPNENG1本5020-1371285,000
5µm1.0mm250mmJPNENG1本5020-8531698,000
5µm1.5mm33mmJPNENG1本5020-8532172,000
5µm1.5mm50mmJPNENG1本5020-8532272,000
5µm1.5mm75mmJPNENG1本5020-8532378,000
5µm1.5mm100mmJPNENG1本5020-8532478,000
5µm1.5mm150mmJPNENG1本5020-1371085,000
5µm1.5mm250mmJPNENG1本5020-8532698,000
5µm2.1mm33mmJPNENG1本5020-0531148,000
5µm2.1mm50mmJPNENG1本5020-0531248,000
5µm2.1mm75mmJPNENG1本5020-0531353,000
5µm2.1mm100mmJPNENG1本5020-0531453,000
5µm2.1mm150mmJPNENG1本5020-0531558,000
5µm2.1mm250mmJPNENG1本5020-0531667,000
5µm3.0mm33mmJPNENG1本5020-0532148,000
5µm3.0mm50mmJPNENG1本5020-0532248,000
5µm3.0mm75mmJPNENG1本5020-0532353,000
5µm3.0mm100mmJPNENG1本5020-0532453,000
5µm3.0mm150mmJPNENG1本5020-0532558,000
5µm3.0mm250mmJPNENG1本5020-0532667,000
5µm4.0mm33mmJPNENG1本5020-0533148,000
5µm4.0mm50mmJPNENG1本5020-0533248,000
5µm4.0mm75mmJPNENG1本5020-0533353,000
5µm4.0mm100mmJPNENG1本5020-0533453,000
5µm4.0mm150mmJPNENG1本5020-0194258,000
5µm4.0mm250mmJPNENG1本5020-0194367,000
5µm4.6mm33mmJPNENG1本5020-0534148,000
5µm4.6mm50mmJPNENG1本5020-0534248,000
5µm4.6mm75mmJPNENG1本5020-0534353,000
5µm4.6mm100mmJPNENG1本5020-0534453,000
5µm4.6mm150mmJPNENG1本5020-0194058,000
5µm4.6mm250mmJPNENG1本5020-0194167,000

ジョイント形式は、パーカー型(UPタイプ)です。
